Heads

48 SERIES
HEAVY DUTY

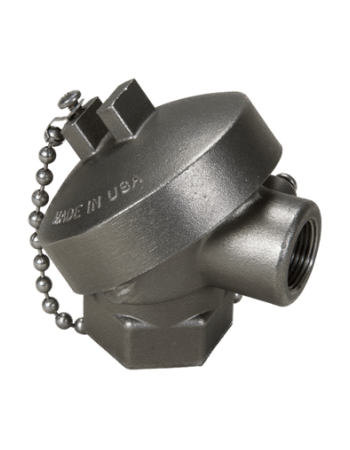

Stainless Steel – Corrosion-resistant Head

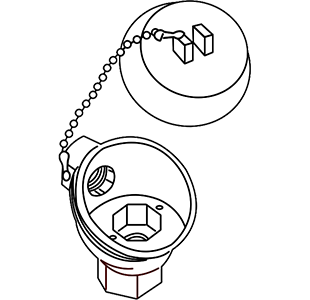

The 48 Series head features a screw-closure cap for security. The head is constructed of 316 stainless steel, giving it excellent chemical and corrosion resistance. A weather-tight seal offers protection from rain and dust.

  • Made in USA!
  • Heavy-duty Design
  • Constructed of corrosion-resistant 316 SS
  • Stainless steel hardware
  • Viton gasket offers excellent seal
  • Optional high-temp. Graphoil gasket available*
  • Conduit opening size: 1/2” or 3/4” NPT

PART SPECIFICATIONS CARTON SPECIFICATIONS
Part # Size
Process X Conduit		 Material Finish Full Qty. Dimensions (inches) Wt.
(lbs.)
48-12-12 1/2” x 1/2” 316 SS None 20 18x15x4 39
48-34-12 3/4” x 1/2” 316 SS None 20 18x15x4 38
48-10-12 1” x 1/2” 316 SS None 20 18x15x4 37
48-12-34 1/2” x 3/4” 316 SS None 20 18x15x4 38
48-34-34 3/4” x 3/4” 316 SS None 20 18x15x4 37
48-10-34 1” x 3/4” 316 SS None 20 18x15x4 36

* Add ‘-O30’ to part number to specify high–temp. Graphoil gasket
