Heads

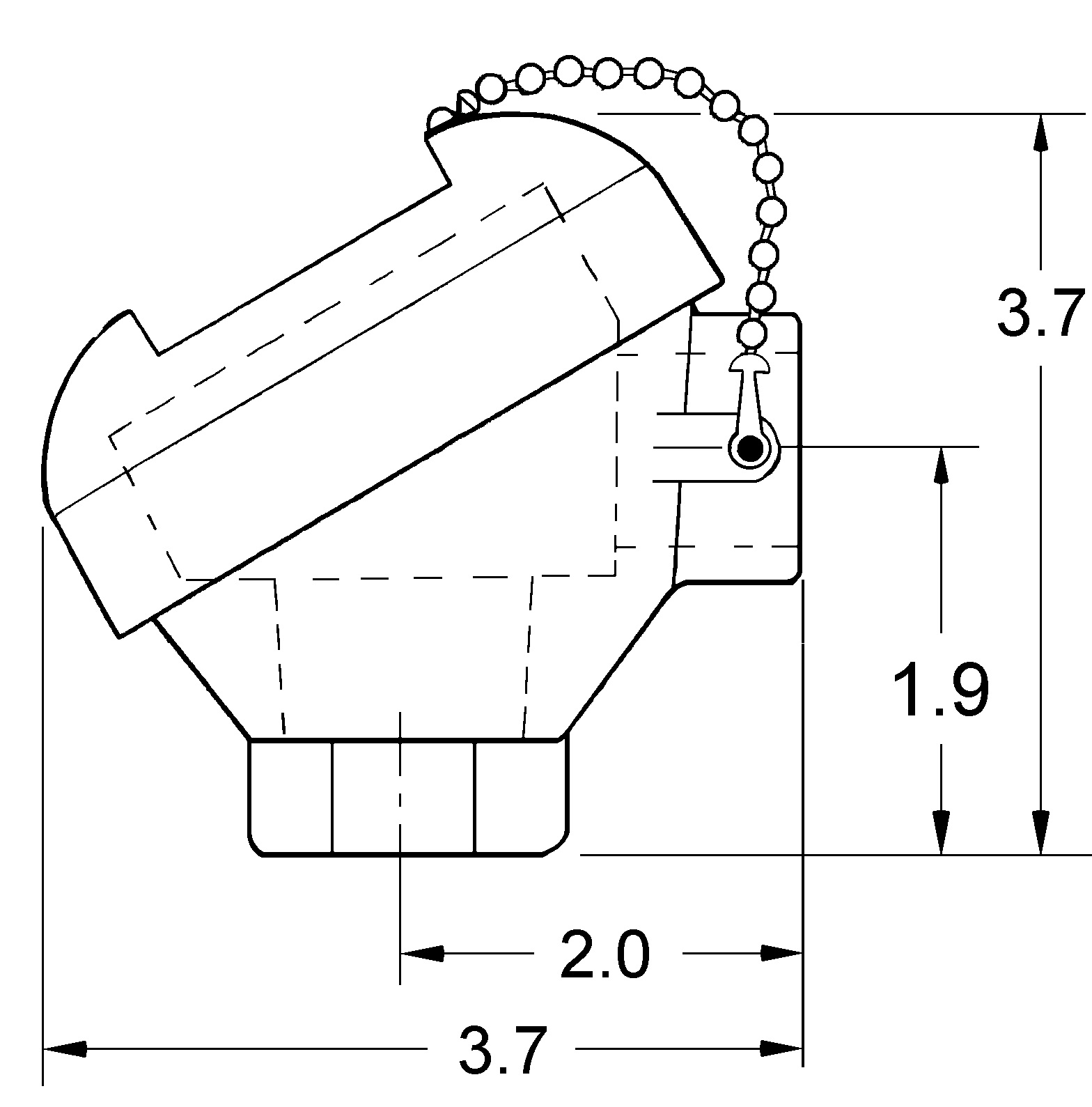

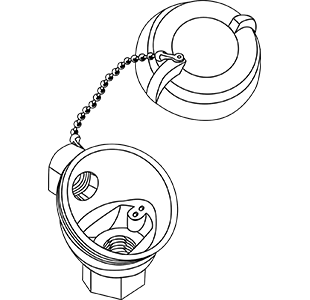

2500 Series
– General Purpose

The 2500 Series head features a screw-closure cap for security. A durable paint* is applied as a rust preventative finish. A weather-tight silicone seal offers protection from wind-blown rain and dust. This head carries a NEMA 4 rating. This head is ideal as a heavy-duty option for customers with industrial applications.

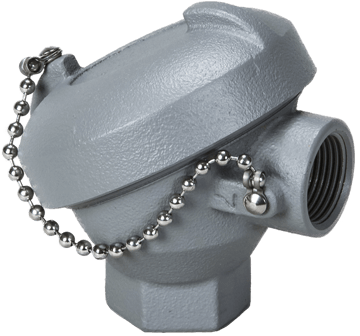

fmtproducts_2500.fw_r1_c1

  • Weather-tight seal—NEMA 4 rating
  • High-temp. silicone gasket offers superior seal
  • 2-wire transmitters directly mount
  • Fits connection blocks up to 2” diameter
  • Secure, screw-top closure
  • Area on cap for application of private label
  • Stainless steel hardware
  • Conduit opening size: 3/4” NPT
  • Optional ‘12/6’ mtg. holes drilled/tapped to 3mm

PART SPECIFICATIONS CARTON SPECIFICATIONS
Part # Size
Process X Conduit 		Material Rating Full Qty. Dimensions (inches) Wt.
(lbs.)
2512 1/2” x 3/4” Cast Iron NEMA 4 20 18x15x4 42
2534 3/4” x 3/4” Cast Iron NEMA 4 20 18x15x4 40
2512-EN 1/2” x 3/4” Cast Iron NEMA 4 20 18x15x4 42
2534-EN 3/4” x 3/4” Cast Iron NEMA 4 20 18x15x4 40
2512-GS 1/2” x 3/4” Cast Iron NEMA 4 20 18x15x4 42
2534-GS 3/4” x 3/4” Cast Iron NEMA 4 20 18x15x4 40
Use -EN for optional electroless nickel plating; -GS for optional grounding screw
