Heads

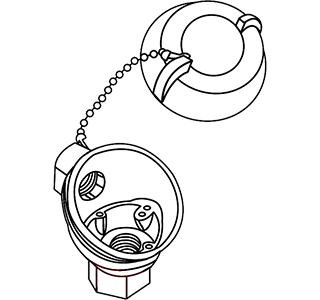

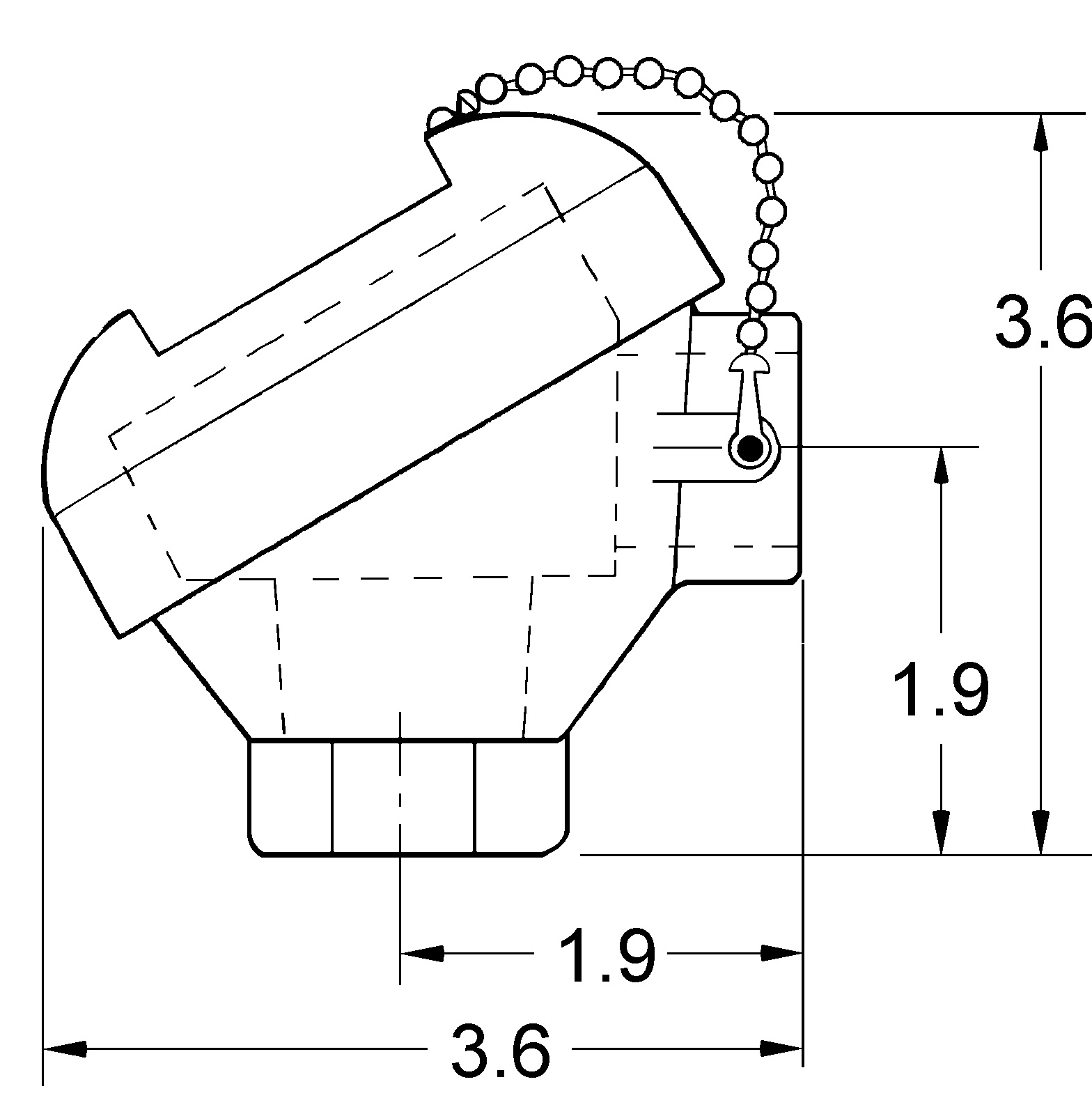

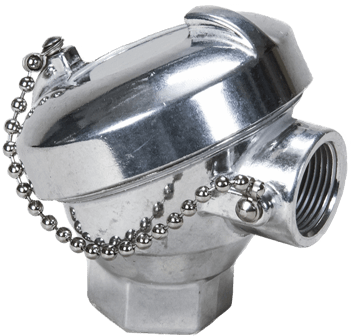

1400 Series
– General Purpose

The 1400 Series head features a screw-closure cap for security. The polished aluminum finish and high-temperature silicone gasket are corrosion resistant. A weather-tight seal offers protection from wind-blown rain and dust. This head carries a NEMA 4 rating and offers excellent protection for internal instrumentation. It is ideal as a general purpose head.

  • Weather-tight seal—NEMA 4 rating
  • 2-wire DIN transmitters mount directly
  • Fits connection blocks up to 2” diameter
  • Secure, screw-top closure
  • High-temp. silicone gasket offers superior seal
  • Area on cap for application of private label
  • Epoxy coating available on some models
  • Conduit opening size: 3/4” or 1/2” NPT

PART SPECIFICATIONS CARTON SPECIFICATIONS
Part # Size
Process X Conduit 		Material Rating Full Qty. Dimensions (inches) Wt.
(lbs.)
1418 1/8” x 3/4” Polished Alum. NEMA 4 50 18x18x8 39
1412 1/2” x 3/4” Polished Alum. NEMA 4 50 18x18x8 38
1412-X 1/2” x 1/2” Polished Alum. NEMA 4 50 18x18x8 39
1412-GY 1/2” x 3/4” Grey Paint NEMA 4 50 18x18x8 38
1434-GY 3/4” x 3/4” Grey Paint NEMA 4 50 18x18x8 38
1412-EC 1/2” x 3/4” White Powder Coat NEMA 4X 50 18x18x8 38
1434-EC 3/4” x 3/4” White Powder Coat NEMA 4X 50 18x18x8 37
1412-3(-4) 1/2” x 3/4” Polished Alum. NEMA 4 50 18x18x8 37
1434 3/4” x 3/4” Polished Alum. NEMA 4 50 18x18x8 37

Thermocouple Connection Heads – Die-cast Aluminum

FMT Products, Inc. 140 W. Main St., Homer, MI 49245 Ph. (517) 568-3373
