Our products offer a variety of designs and features to address a wide range of end-user applications.

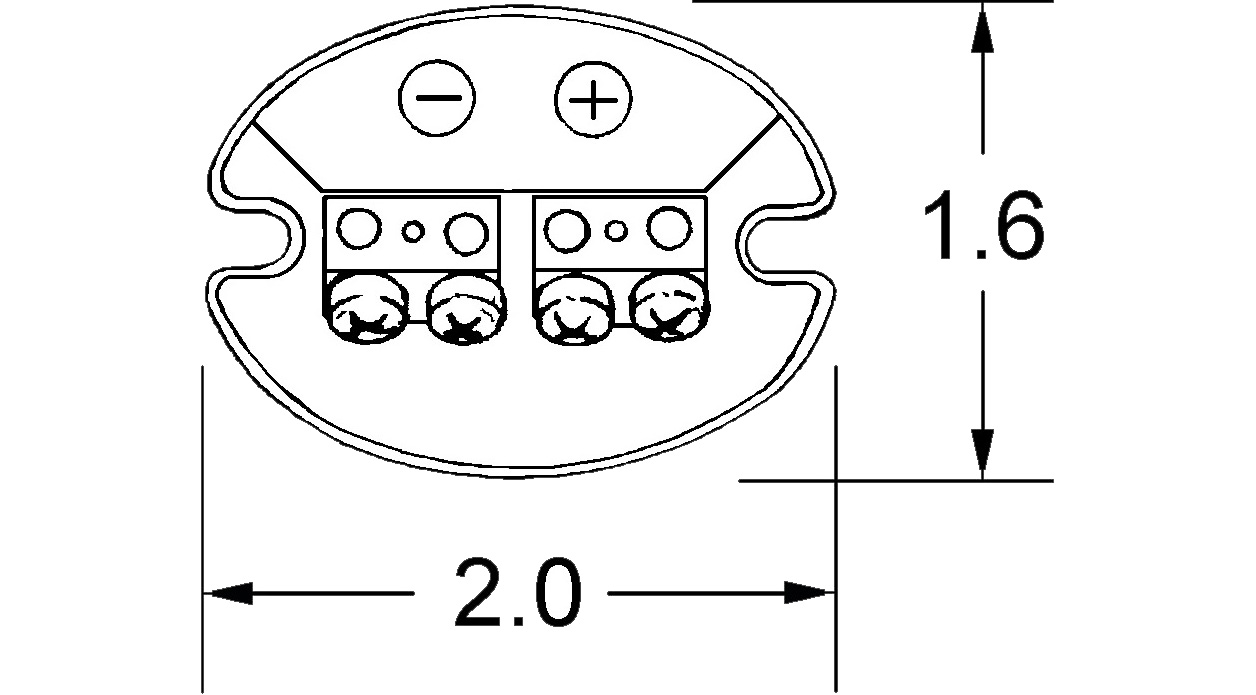

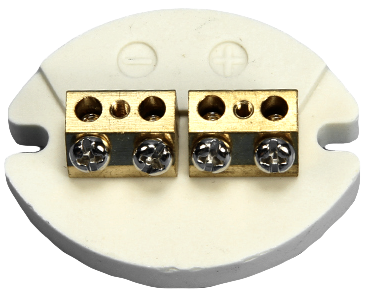

These blocks are made of high-strength L-5 Steatite ceramic so they will hold up to the demands of your application. Large brass terminals are available in straight or angled configuration. Pass through holes in the ceramic base allow leads to mount directly into the bottom of each terminal. Terminals are fitted with anti-vibration break-point screws.
| PART SPECIFICATIONS | CARTON SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|---|
| Part # | Number of Terminals | Material | Terminal Style | Full Qty. | Dimensions (inches) |
Wt. (lbs.) |
|
| 422 | 2 | L-5 Steatite | Angled | 50 | 12x12x2.25 | 8 | |
| 422S | 2 | L-5 Steatite | Straight | 50 | 12x12x2.25 | 7 | |
